Dashboards Query Language (DQL) Reference¶

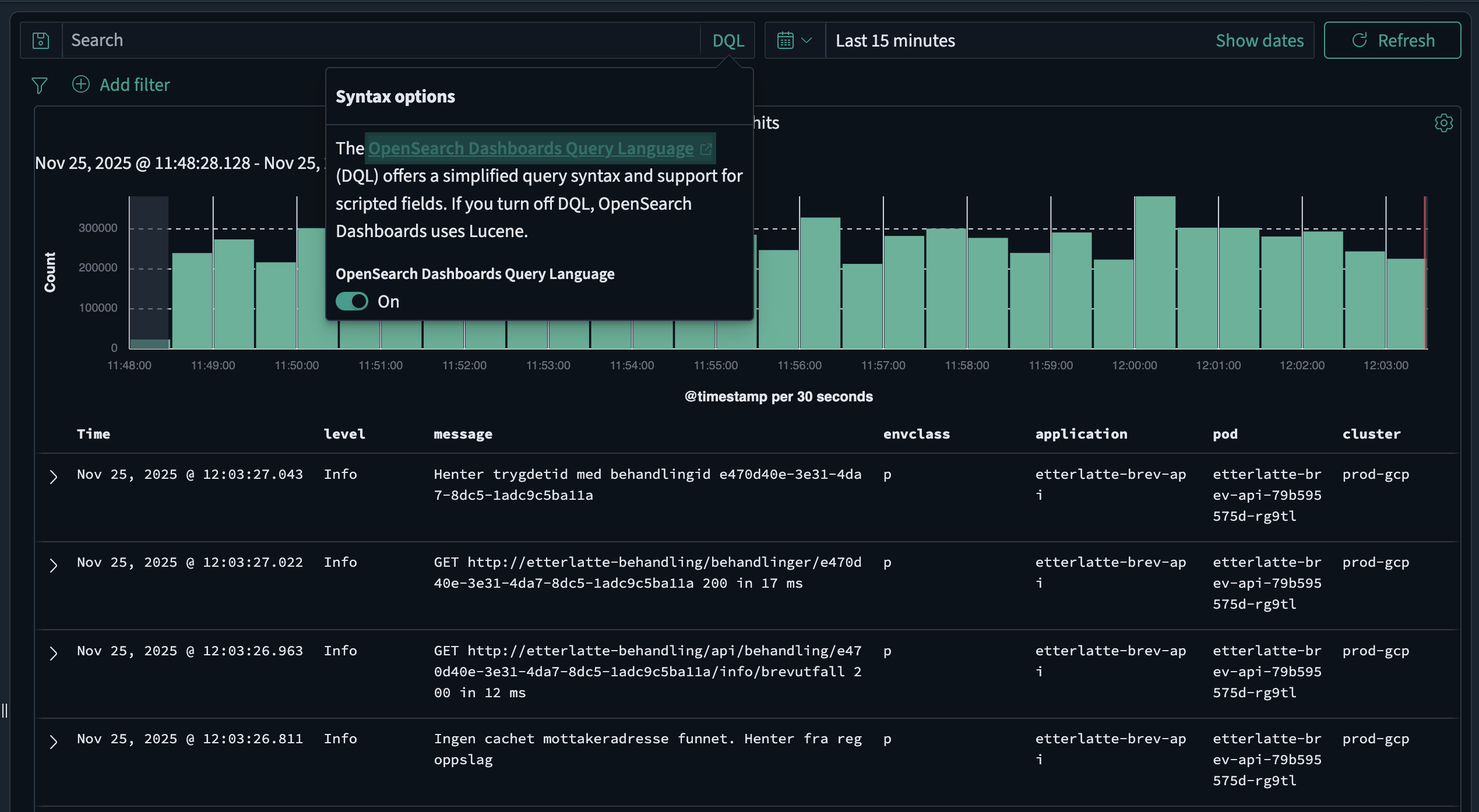

The Dashboards Query Language (DQL) is a simple text-based query language for filtering data in nav-logs (OpenSearch Dashboards). DQL is the default query language in OpenSearch Dashboards and is simpler to use than Lucene query syntax.

Basic syntax¶

Search for terms¶

By default, DQL searches all fields for the specified terms. Terms are combined with or by default:

error exception

This searches for documents containing error or exception in any field.

Exact phrase search¶

To search for an exact phrase, use quotation marks:

"database connection failed"

Field-specific search¶

To search in a specific field, use the field name followed by a colon:

level: ERROR

message: "timeout"

Common fields¶

The following fields are common to all logs in nav-logs and can be used in your DQL queries:

@timestamp - The timestamp of the log event
application - The application the log event originated from
cluster - The cluster the log event originated from
container - The container the log event originated from
host - The host the log event originated from
level - The log level of the log event
message - The log message itself
namespace - The namespace the log event originated from
pod - The pod the log event originated from
team - The team who owns the application

Operators¶

Boolean operators¶

DQL supports and, or, and not operators (case-insensitive):

level: ERROR and application: "my-app"

level: ERROR or level: WARN

level: ERROR and not message: "expected"

Precedence order: not > and > or. Use parentheses to control evaluation order:

(level: ERROR or level: WARN) and application: "my-app"

Comparison operators¶

DQL supports numeric and date comparisons using >, <, >=, and <=:

response_time > 1000

date >= "2024-01-01" and date < "2024-02-01"

Field existence¶

To check if a field exists, use the * wildcard:

error_code: *

Negation¶

To search for documents where a field does not contain a specific value:

not level: DEBUG

Note: This returns documents where either the field doesn't contain the value OR the field doesn't exist. To filter only documents that have the field:

level: * and not level: DEBUG

Wildcards¶

DQL supports the * wildcard for matching multiple characters. Wildcards work in both field names and search terms:

In field names¶

title*: error

Matches fields like title, title.keyword, etc.

In search terms¶

message: error*

Matches error, errors, errored, etc.

app*name: "my-app"

Matches fields like app_name, application_name, etc.

Note

Wildcards are not supported within phrase searches (quoted strings).

Grouping¶

Use parentheses to group multiple terms when searching in a field:

level: (ERROR or WARN)

This is equivalent to:

level: ERROR or level: WARN

Nested fields¶

For nested object fields, use the dot notation:

kubernetes.pod.name: "my-pod"

For nested arrays, use curly braces:

tags: {name: production}

Multiple conditions in nested fields:

tags: {name: production and value: true}

Reserved characters¶

The following characters are reserved in DQL: \, (, ), :, <, >, ", *

To search for these characters, escape them with a backslash:

format: 2\*3

path: "C\:\\Users\\file.txt"

Example queries¶

Query	Description
`error`	Documents containing "error" in any field
`level: ERROR`	Documents where level is ERROR
`"connection timeout"`	Documents containing the exact phrase
`application: "my-app" and level: ERROR`	ERROR logs from my-app
`level: ERROR or level: WARN`	ERROR or WARN level logs
`level: (ERROR or WARN)`	Same as above
`not level: DEBUG`	All logs except DEBUG level
`message: error*`	Messages starting with "error"
`response_time > 1000`	Slow responses
`@timestamp >= "2024-01-01"`	Logs from 2024 onwards
`level: ERROR and not message: "expected"`	Unexpected errors
`namespace: "my-team" and level: ERROR`	Team's error logs
`error_code: *`	Documents with error_code field
`level: * and not level: DEBUG`	All logs with level field, excluding DEBUG
